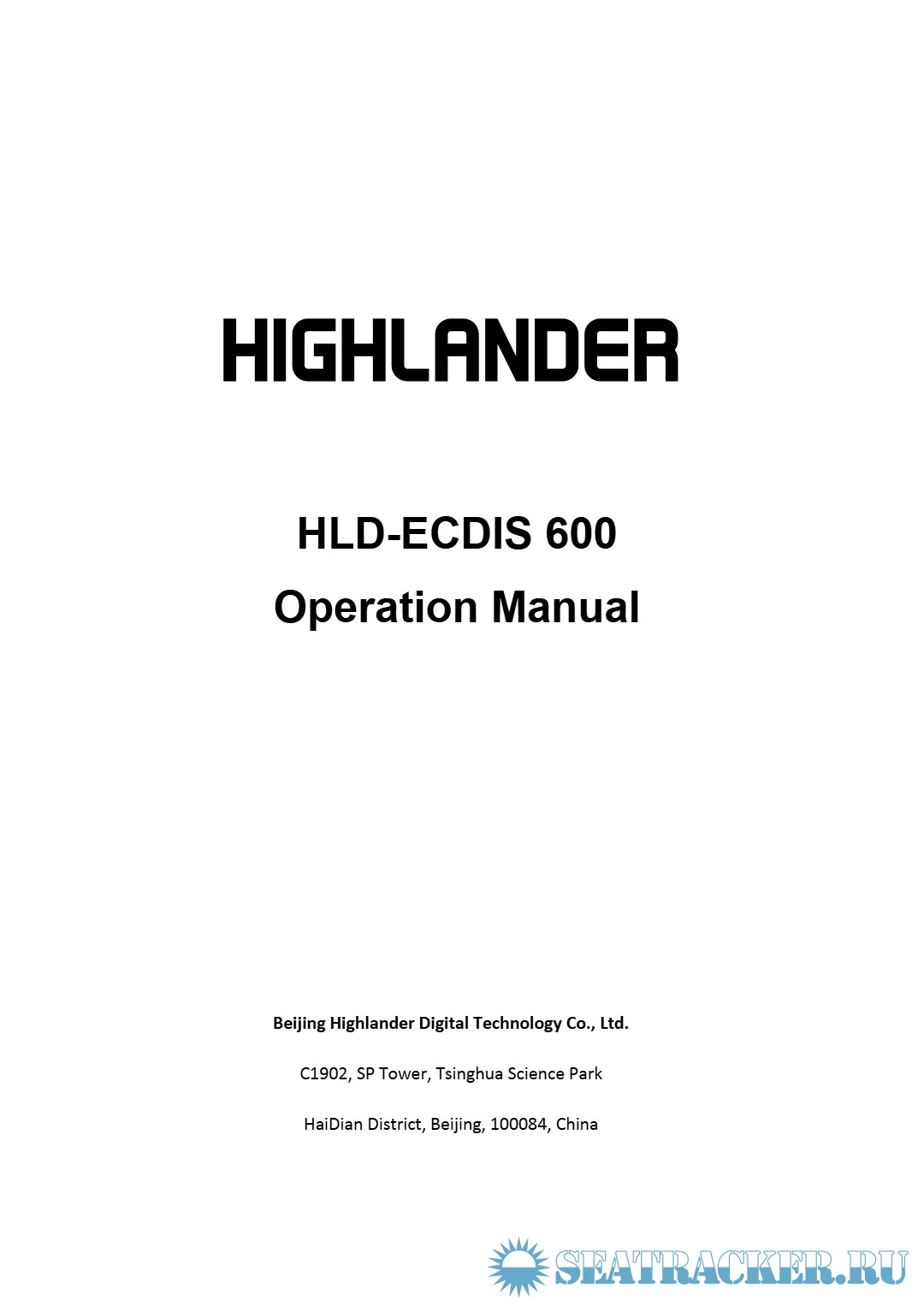

HLD-ECDIS 600 Operation Manual
Language: English
Author: Highlander
Genre: Operating manual
Format: PDF
Quality: eBook
Pages count: 240
Description: HLD-ECDIS 600 is fully developed by Highlander's own advanced technology. The product fully meets the requirements of IMO standards and the latest IEC standards, approved by CCS and the Norwegian classification society DNV-GL.
A prototype of the system has undergone field validation in the market, ensuring convenient use, stable and reliable performance. The product supports Chinese/English switch, chart data update online, radar overlay, track control, etc. The system can be composed of a double workstation, and can also be used as a part of INS.
Features
• Chinese/English switch: It provides a Chinese/English switch function, and the Chinese interface is more user-friendly and intuitive for Chinese-speaking operators.• Track control: Track Control is available by connecting to Highlander's Steering Control System so that the sailor can focus on other tasks instead of frequent rudder adjustment.
• ENC update on line: ENC updates can be implemented not only locally, but also online, by accessing the data server at Highlander and downloading the latest update files.
• Weather routing: It provides weather data loading and display function, route generation based on the departure port and destination, and route optimization based on weather data and optimization index (short time, short distance, or lower energy consumption), and can supply the weather forecast data of China and France to the shipowner, to assist the sailor in making navigational decisions.
• NAVTEX management: It receives and displays NAVTEX messages, and some filter criteria are available. For certain special NAVTEX messages, such as military exercise areas or wrecks, the exact position of the objects will be drawn on the charts.
• Radar echo and ARPA overlay: Highlander Radar overlay is supplied directly via LAN. For other manufacturers' radar, an Extractor Radar Acquisition PCI Board adapter is needed for echo overlay, and ARPA targets can be displayed on charts based on TTD or TTM sentences.
• Good training system: To meet the requirements of the latest STCW convention, training is available at Highlander offices and authorized engineering agencies, and can also be conducted at the shipowner's authorized training center, or via Highlander's online education system (http://ecdis600.highlander.com.cn/).
• Chart data display: It supports IHO S-57, S-63 formats of electronic chart and supports Mercator Projection and Polar Stereographic Projection, meeting the display requirements for polar navigation areas at high latitudes above 85°. It can supply the ENC data of UKHO AVCS, PRIMAR, CNHO, China MSA, China CWB (Yangtze River), etc. to the shipowner, with global data coverage.
• Friendly interface: The integrated information display allows the user to conveniently observe and set control parameters at any time; it provides English/Chinese switching and supports 19", 23", 24" and 26" and other maritime-grade industrial LCD monitors.

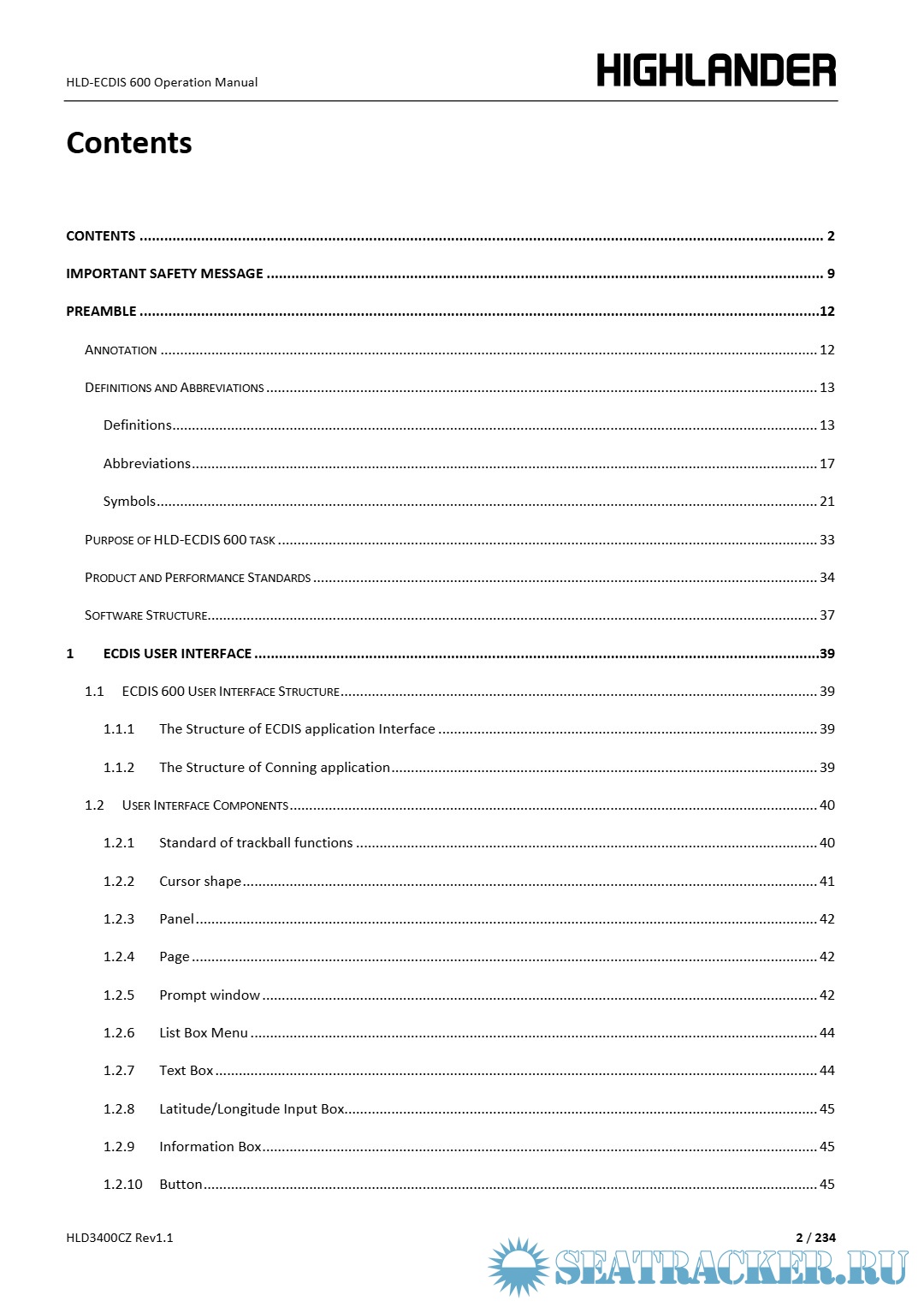

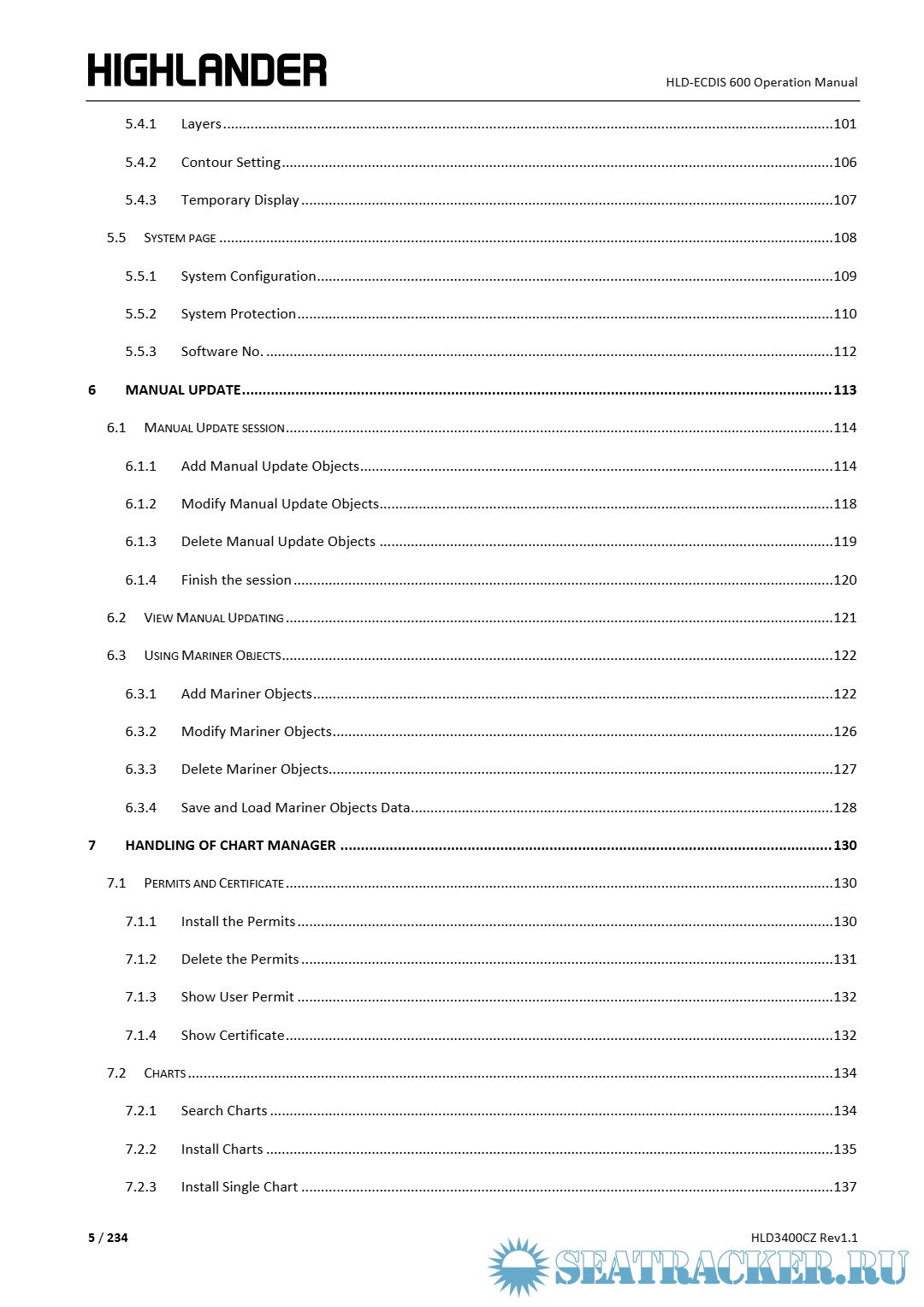

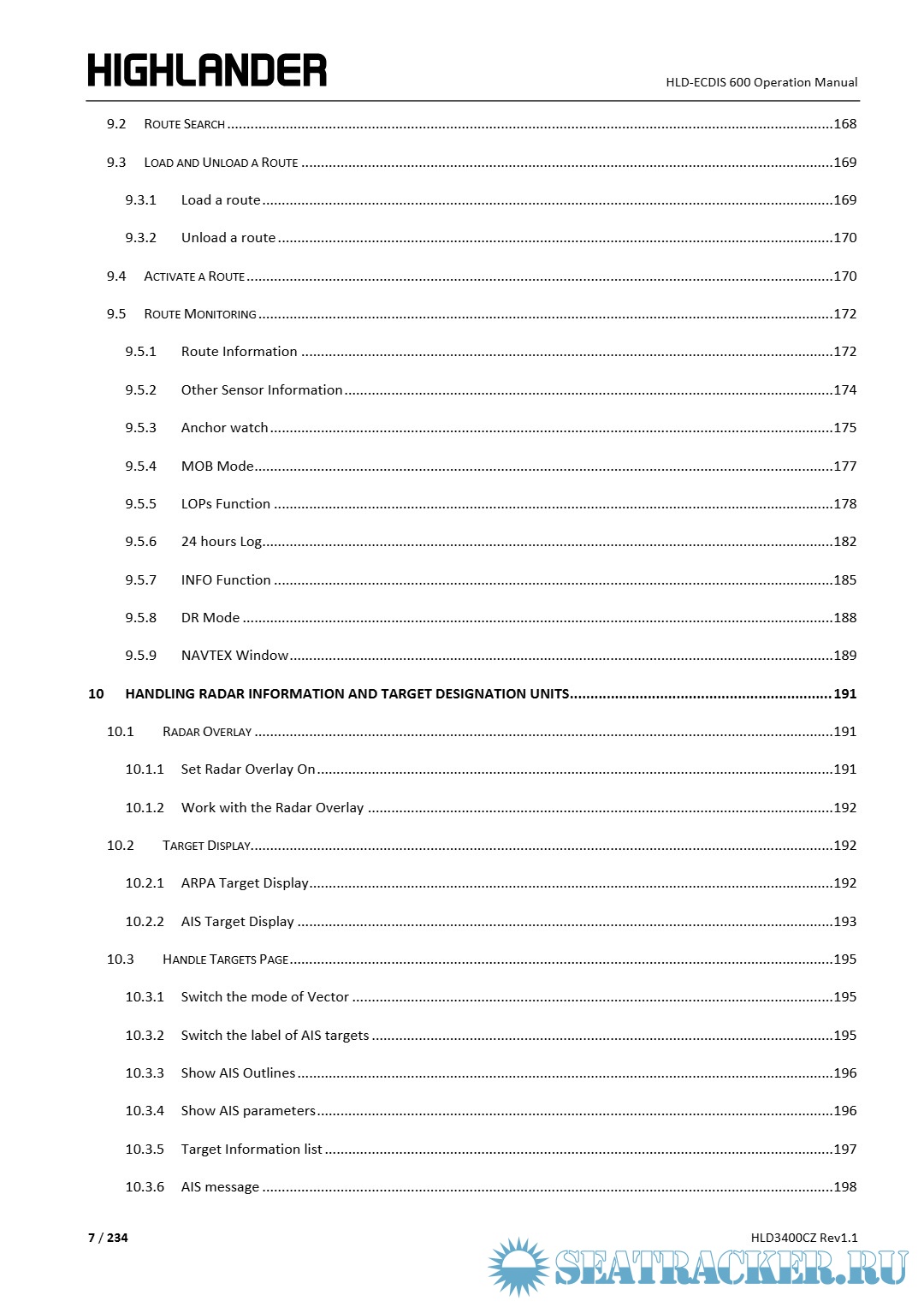

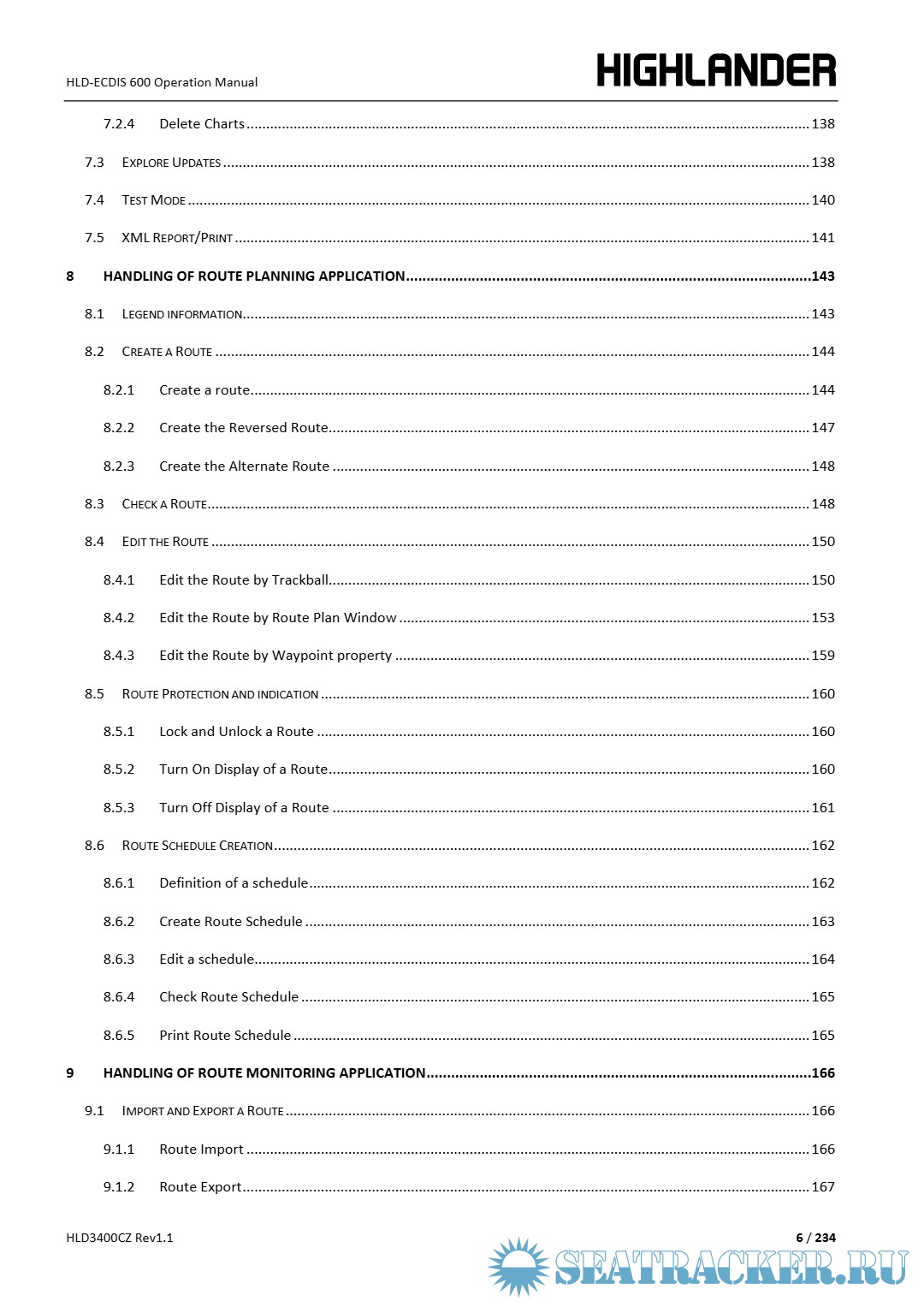

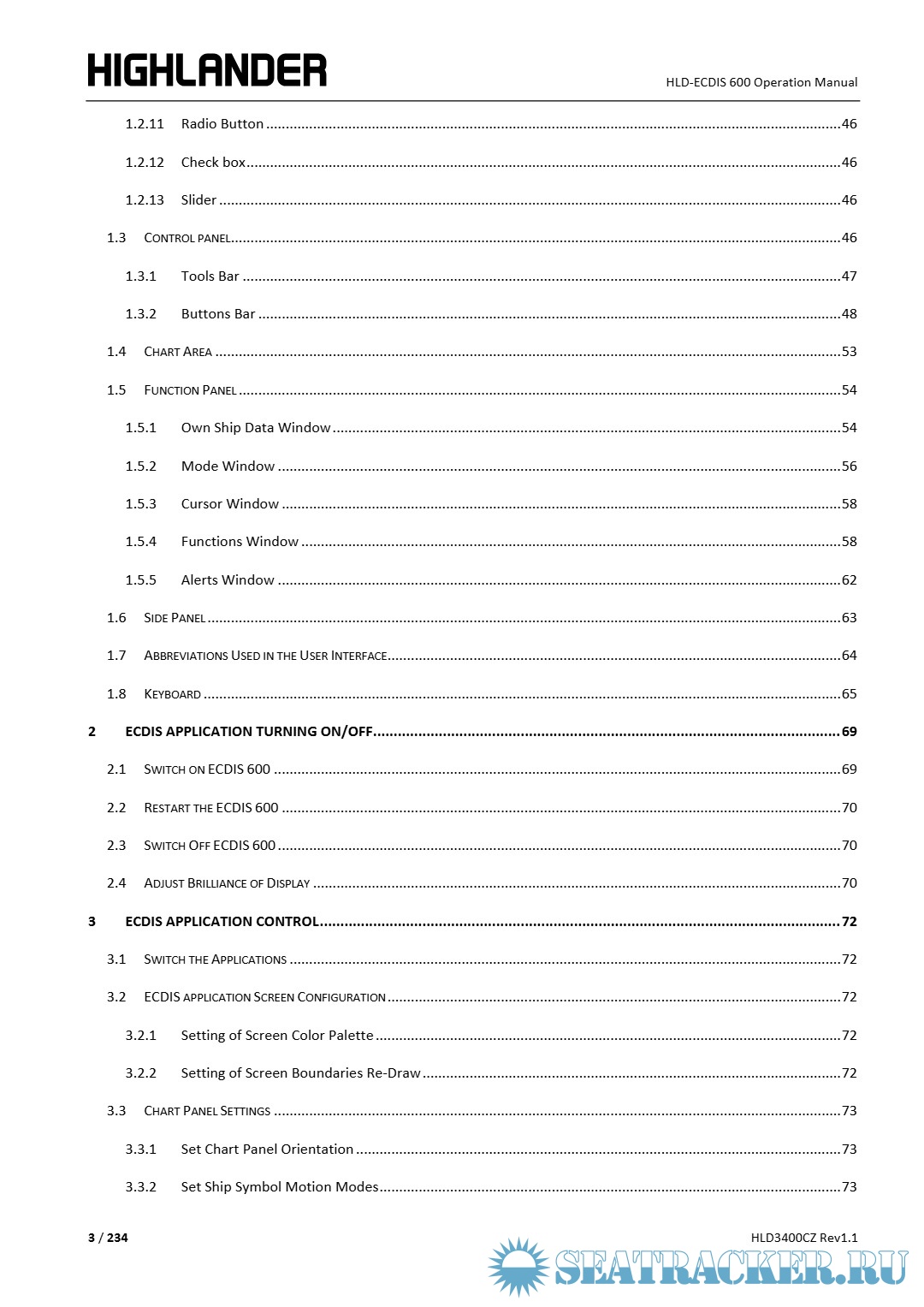

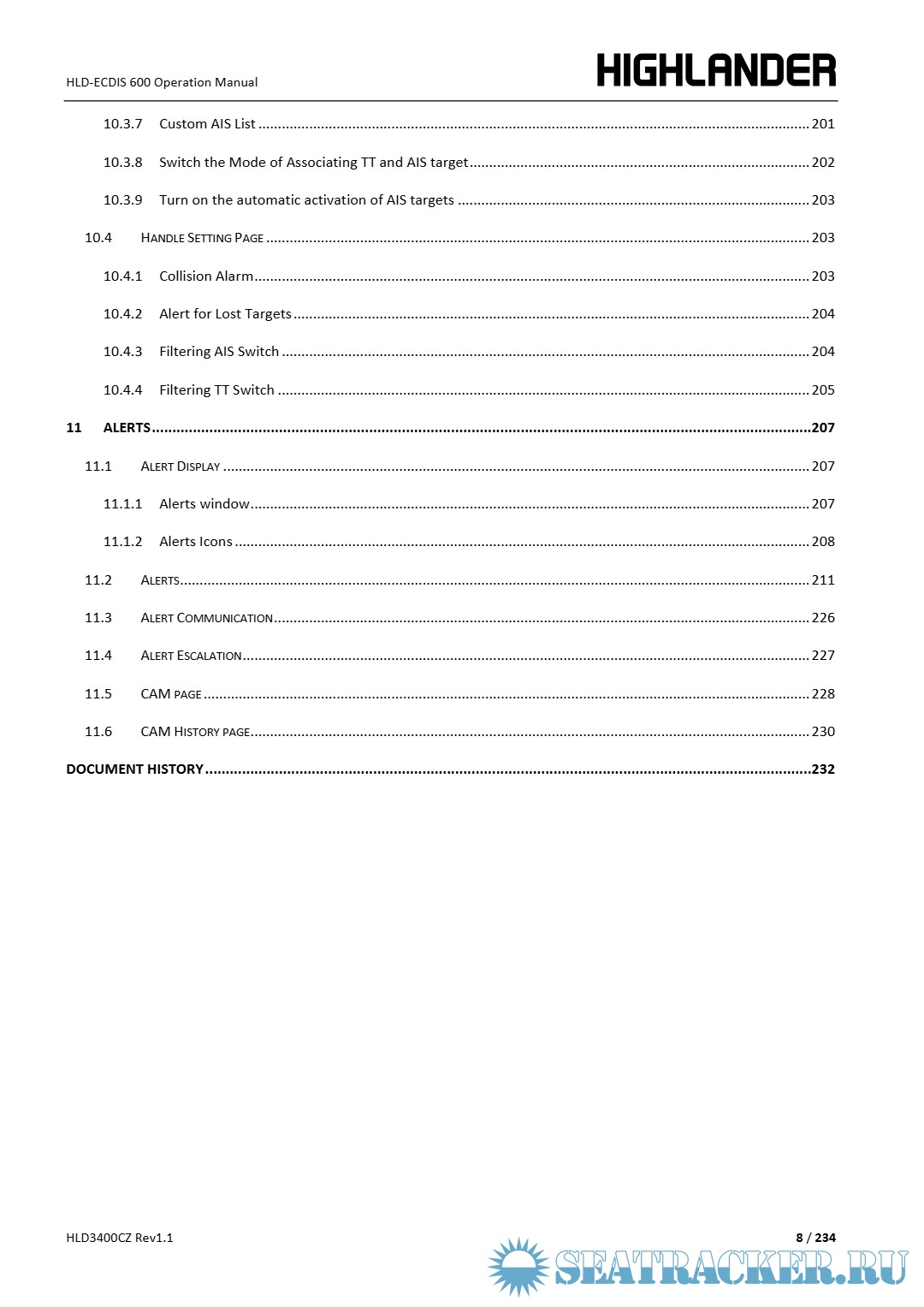

Contents

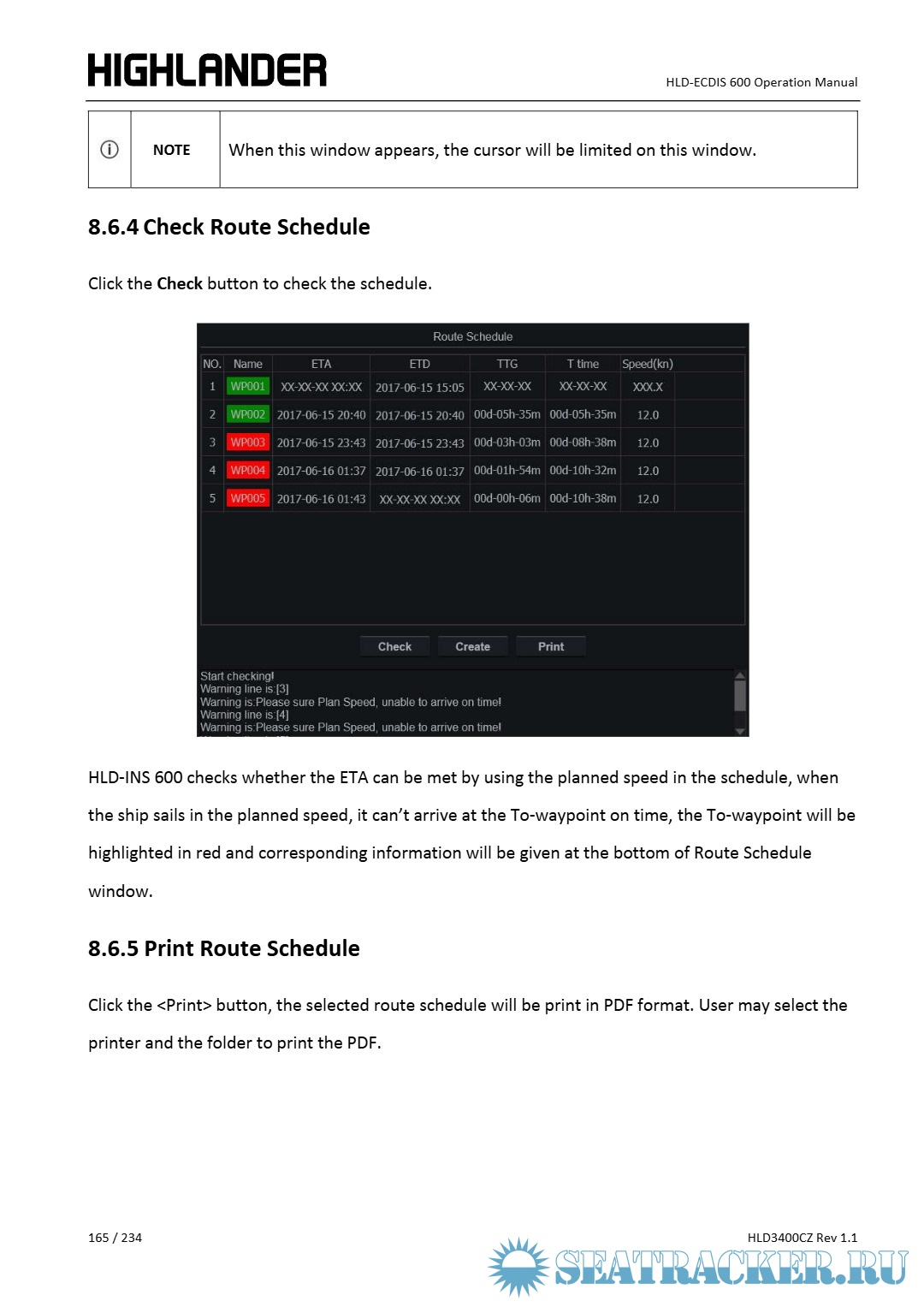

Screenshots
hld-ecdis Manual-600_4138.pdf
Download [12 KB]
